Tents
Pinnacle Tents
About Pinnacle Tents

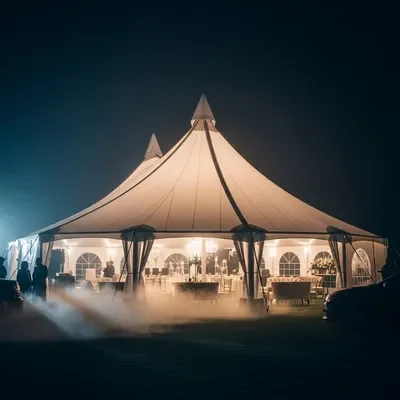

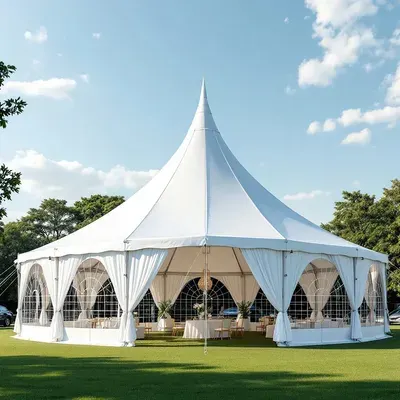

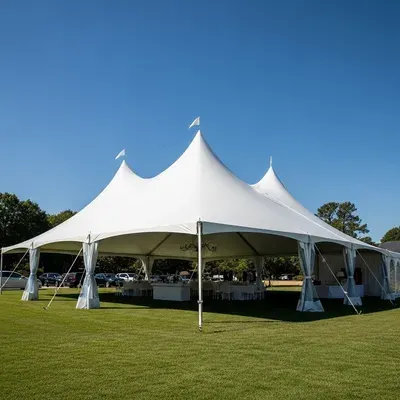

Pinnacle Tents feature a stylish high-peak design that makes them an attractive choice for events, exhibitions, parties, and outdoor functions. With their durable frame and premium-grade fabric, they combine strength with an elegant appearance, offering reliable protection against weather conditions while enhancing the overall ambiance. The elevated centre peak creates a striking visual profile that sets branded event spaces apart — making Pinnacle Tents a preferred choice for weddings, corporate hospitality, and high-footfall retail activations across the UAE.
Specifications
Sizes available: 3m to 15m in width.
Frame: Galvanized Steel Tube / Hard-pressed Extruded Aluminium.
Roof Cover: 850 GSM PVC Fabric (Fire Retardant, UV Resistant, Waterproof).
Walls: 650g/sqm translucent white PVC for natural light diffusion.
Connections: Hot Dip Galvanised Steel Connectors.
Bay Depth: 5m standard — modules are linkable for larger floor areas.
Peak Height: Increases proportionally with span width, maximising interior headroom.
Key Features & Applications
- High-peak profile allows hot air to rise and escape through the apex — significantly reducing interior temperatures during UAE summers compared to flat-roof tent alternatives.
- 650g/sqm translucent white PVC side walls diffuse natural daylight evenly across the interior, minimising the need for artificial lighting during daytime events.
- Hot-dip galvanised steel connectors provide superior corrosion resistance in coastal and high-humidity environments, including sites near the Arabian Gulf.
- Ideal applications include weddings and majlis events, corporate hospitality activations, outdoor exhibitions, Ramadan tents, sports day pavilions, and school or community events.
- Available from 3m garden pavilions to 15m wide event halls — modular bays allow any length, enabling Pinnacle Tents to serve intimate gatherings and large-scale festivals alike.
- Dhilal Al Qamar offers full installation, dismantling, and optional flooring, lighting, and air-conditioning packages for events across Dubai, Abu Dhabi, Sharjah, and all UAE Emirates.
Frequently Asked Questions
How do Pinnacle Tents compare to flat-roof tents for outdoor events in the UAE?
The high-peak design of Pinnacle Tents lets hot air rise naturally toward the apex and escape, which measurably reduces interior temperatures during UAE summer events. The translucent PVC walls also remove the dark, enclosed feeling common with opaque flat-top tents, making the guest experience noticeably more comfortable without raising air-conditioning costs. The pitched roof sheds rain, sand and dust quickly, whereas a flat roof can let water pool and sag. The peaked silhouette is also more elegant, which is why Pinnacle Tents are often chosen for weddings, garden receptions and VIP areas where the tent is part of the setting. A flat-roof tent can be simpler and more economical for utilitarian uses such as storage, back-of-house areas or temporary workshops. We can advise which suits your event once we know the guest numbers, the date and time of day, the ground conditions and whether the space will be air-conditioned.
What sizes are available and can multiple Pinnacle Tents be joined together?
Pinnacle Tents are available from 3m to 15m wide, and they can be connected side by side or end to end to create large integrated event halls. The standard bay depth is 5m, so almost any total footprint is achievable. Smaller units work well as welcome areas, bars, registration points or VIP lounges, while larger units and joined configurations can house full seated dinners, exhibitions or prayer areas. When several tents are joined, gutters between the units keep the connected space dry, and the repeated peaks give a large structure an attractive, rhythmic roofline. Our team surveys the site and designs the best configuration around guest capacity, the catering layout, stage and dance floor positions, emergency exits and access for guests and suppliers. We also check the ground for level and for anchoring, whether the tent will stand on grass, sand, paving or asphalt, before confirming the final layout.
Does Dhilal Al Qamar provide installation and full event support for Pinnacle Tents?
Yes. We provide complete installation, including groundwork assessment, foundation anchoring, frame erection, fabric tensioning and a final safety inspection before handover. Optional additions include raised flooring, perimeter lighting, HVAC ducting and branded fabric printing. We operate across all UAE emirates and can mobilise for both short-term event hire and long-term semi-permanent installations. For events, we agree an installation and dismantling schedule around your programme, so the tent is ready well before guests and suppliers arrive and is cleared promptly afterwards. For longer installations, we plan anchoring and fabric specifications for extended exposure to sun and wind, and we can carry out periodic inspections while the tent is in use. Where the venue or the authorities require it, we provide the technical information needed for event permits. Contact us with the date, location and guest numbers, and we will propose a layout and quotation.
Reviewed by our in-house engineering team
The Pinnacle Tents specifications on this page — spans, frame materials, fabric weights, load figures and warranty terms — are set by Dhilal Al Qamar's own design and engineering department, the same team that produces the shop drawings, structural calculations and wind-load analysis for every project we deliver. Structures are then fabricated at our Sajja, Sharjah facility and installed by our own trained crews rather than subcontractors, so the figures published here are the ones we build to.
- Manufacturing in the UAE since 2013 — 12+ years of GCC delivery
- In-house design, engineering, fabrication and installation
- Structural calculations and wind-load analysis on every project
- Government and enterprise clients including Dubai Police, Dubai Developments and the Department of Municipalities & Transport
Technical specifications last reviewed 25 August 2026. More about our engineering team
